Revillusion 42-inch Built-In Electric Firebox with Front Glass and Plug Kit, Herringbone - RBF42-FG

Product Description
Enjoy classic, elegant features with Revillusion®—the electric fireplace inspired by traditional design. You’ll be entranced by the flickering flames as they dance between glowing logs, surrounded by a herringbone brick interior with natural soot markings. The timeless appeal of Revillusion® creates an authentic, everlasting impression, adding both ambiance and warmth to your living space.

---

Key Features and Benefits

Flame Base Colors
Flame base colors include red and orange, allowing you to select the perfect tone to match your room.

Translucent Acrylic Panel
Includes a translucent acrylic panel that reflects the flames, making them appear as if they are coming from within the logs.

Realogs™ Technology
Realogs™ are handcrafted and molded from real wood logs, featuring an inner lit LED light that produces a glowing, pulsating effect, mimicking the look of burning logs.

Adjustable Interior Lighting
Adjust the brightness of the interior lighting from high to low, including a midnight mode that turns off lighting to reduce TV glare.

Interior Options
Also available with a weathered concrete interior (RBF30WC, RBF36WC, RBF42WC, RBF36PWC, RBF24DLXWC).

Powerful Fan-Forced Heater
The fan-forced heater provides on-demand heat for rooms up to 1,000 square feet.

Heater Disable Option
The fireplace heater can be permanently disabled by removing the electronic jumper on the main control board.

Easy Installation
No venting, gas lines, or piping are required—simply frame, wire, and finish for quick and easy installation.

2-Year Limited Warranty
Includes a 2-year limited warranty on parts and a 1-year limited warranty on service.

Revillusion Flame Technology
Revillusion® flame technology produces ultra-realistic flames that mimic the natural look and movement of fire.

Dimmable Flames
You can dim the flames, which simultaneously lowers the flame height for a customizable ambiance.

Full View of the Fireplace Interior
Enjoy a clear, unobstructed view of the fireplace interior, with no obstructions to the flames.

Mood Lighting
The firebox includes mood lighting on the side, back, and top in colors such as white, yellow, and red, adding extra ambiance to your space.

Ambient Light Sensor
The ambient light sensor automatically adjusts the firebox light to suit the room’s lighting conditions, whether day or night.

Included Accessories

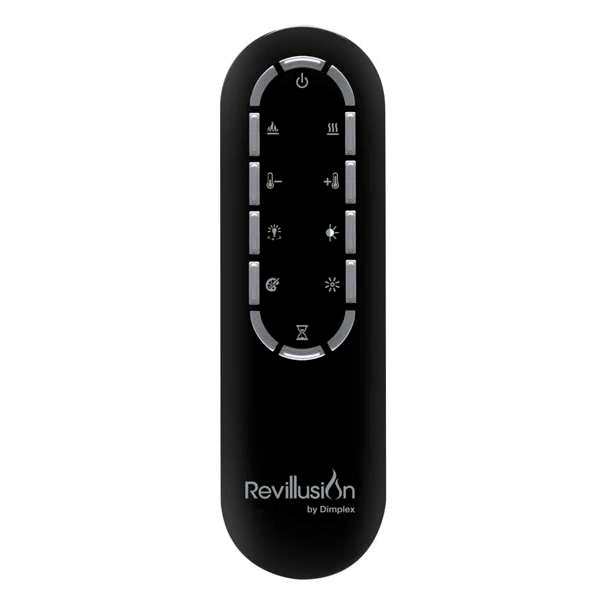

Includes tempered front glass, a plug kit, and a mood-maker remote control for easy operation.

Seasonal Comfort
You can deactivate the heater via the controls, allowing you to enjoy the fire’s ambiance during warmer months without the heat.

Cool-to-the-Touch Glass
The front glass remains cool to the touch, ensuring safety for children and pets since the flames do not emit heat.

Flexible Power Supply Options
Hardwire to a 120V/240V power supply or use the included 120V plug-in cord kit for easy installation.

---

Specifications

---

Brand: Dimplex
Model Name/Series: Revillusion®
Model Number: RBF42-FG

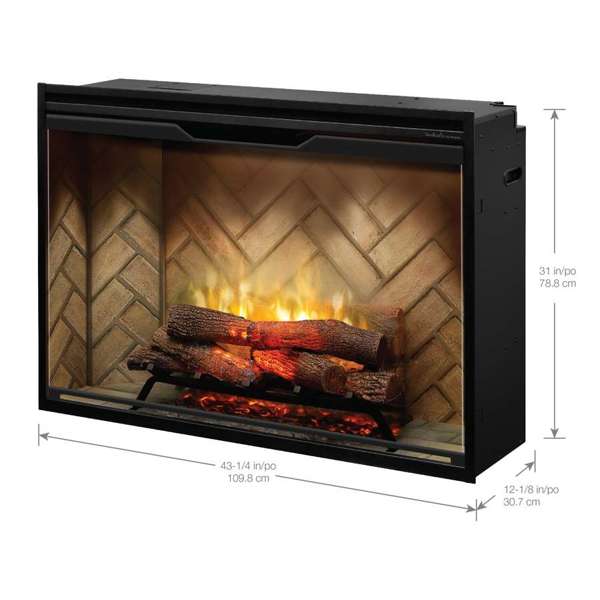

Product Dimensions (H x W x D): 31.08 x 43.23 x 12.07 inches
Weight: 111.85 lbs
Wattage: 1300/1975/2575 watts
Amps: 10.8/9.5/10.7 amps
Adjustable Brightness: Yes
Voltage: 120/208/240V

---

Carton Dimensions and Weight
Height: 36.40 inches
Width: 47.50 inches
Depth: 16.30 inches
Weight: 112.70 lbs

---

Power Connections
Plug-In/Hard Wired

Safety Agency Approval Countries: Canada; USA

---

Warranty
2-Year Limited Warranty (parts), 1-Year Limited Warranty (service)

---

Product Information
Title: Dimplex Revillusion 42in Built-In Firebox with Front Glass and Plug Kit
Material Number: 500002410
UPC: 781052152182
PROP 65 Compliance: Yes
