Revillusion® 30-inch Built-In Electric Firebox with Front Glass and Plug-Kit, Weathered Concrete - RBF30WC-FG

Product Description
The Revillusion® Electric Fireplace combines classic, elegant features inspired by traditional design. Watch as the flickering flames dance between glowing logs, surrounded by a weathered concrete interior with natural soot markings. The timeless appeal of Revillusion® creates a lasting, authentic impression in any room.

---

Key Features and Benefits

• Flame Base Colors
  Flame base colors include red and orange, providing customizable ambiance to fit your room.

• Translucent Acrylic Panel
  Includes a translucent acrylic panel that reflects the flames, making them appear as if they are coming from within the logs themselves.

• Realogs™ Technology
  Realogs™ are handcrafted and molded from real wood logs with an inner LED light that adds a glowing, pulsating effect, simulating the look of burning logs.

• Adjustable Interior Lighting
  Adjust the brightness of the interior lighting from high to low, including a midnight mode to turn off the lighting, reducing glare when watching TV.

• Interior Options
  Also available with a herringbone brick interior (RBF30, RBF36, RBF42, RBF36P, RBF24DLX).

• Powerful Fan-Forced Heater
  Provides on-demand heat, warming up to 1,000 square feet.

• Heater Disable Option
  Fireplace heater can be permanently disabled by removing the electronic jumper on the main control board.

• Easy Installation
  No venting, gas lines, or piping required. Simply frame, wire, and finish for quick and easy installation.

• 2-Year Limited Warranty
  Comes with a 2-year limited warranty for peace of mind.

• Revillusion Flame Technology
  Produces ultrarealistic flames that mimic natural fire for a realistic fire experience.

• Dimmable Flames
  Ability to dim the flames, which simultaneously lowers the flame height, for the perfect level of ambiance.

• Full View of Fireplace Interior
  Enjoy a full, unobstructed view of the firebox interior with clear visibility through the flames.

• Mood Lighting
  Includes mood lighting on the side, back, and top of the firebox interior. Available colors include white, yellow, and red.

• Ambient Light Sensor
  The ambient light sensor automatically adjusts the firebox light to suit the room’s lighting, day or night.

• Included Accessories

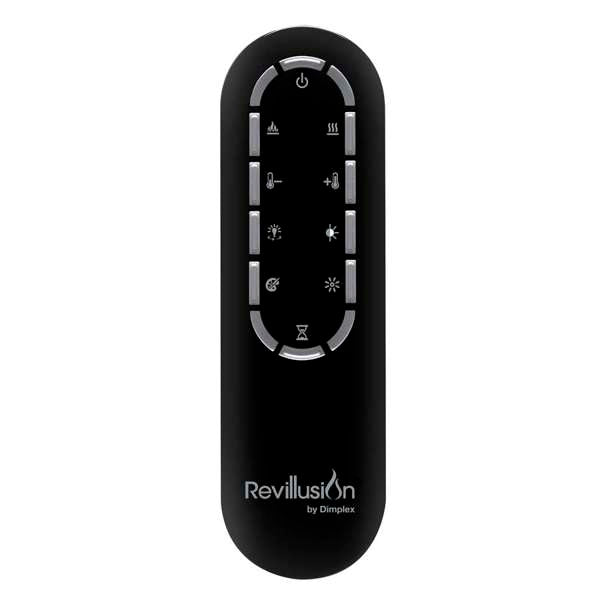

  Includes tempered front glass, a plug kit, and a mood-maker remote control for easy use.

• Seasonal Comfort
  Enjoy the ambiance of a fire during the warmer months by deactivating the heater through the controls.

• Cool-to-the-Touch Glass
  The front glass remains cool to touch, ensuring safety for children and pets, as the flames do not emit heat.

• Power Supply Options
  Can be hardwired to a 120V/240V power supply or use the included 120V plug-in cord kit for installation flexibility.

---

Specifications

---

Brand: Dimplex
Model Name/Series: Revillusion®
Model Number: RBF30WC-FG
Product Dimensions (H x W x D): 26.54 x 37.17 x 12.07 inches
Weight: 84.20 lbs
Wattage: 1300/1975/2575 watts
Amps: 10.8/9.5/10.7 amps
Adjustable Brightness: Yes
Voltage: 120/208/240V

---

Carton Dimensions and Weight
Height: 31.70 inches
Width: 35.20 inches
Depth: 16.30 inches
Weight: 84.90 lbs

---

Power Connections
Plug-In/Hard Wired

Safety Agency Approval Countries: Canada; USA

---

Warranty
2-Year Limited Warranty (parts), 1-Year Limited Warranty (service)

---

Product Information
Title: Dimplex Revillusion 30in Built-In Firebox with Front Glass and Plug-Kit
Material Number: 500002389
UPC: 781052152137
PROP 65 Compliance: Yes
