Revillusion® 24-inch Built-In Electric Firebox, Weathered Concrete - RBF24DLXWC

Product Description
The Revillusion® Electric Fireplace offers classic, elegant features inspired by traditional design. Its mesmerizing flames flicker between glowing logs, set against a weathered concrete interior with natural soot markings. The timeless appeal of Revillusion® creates an authentic, lasting impression, bringing a natural fire experience to your home.

---

Key Features and Benefits

• Flame Base Colors
  Flame base colors include red and orange, providing customizable lighting options.

• Translucent Acrylic Panel
  Includes a translucent acrylic panel that reflects the flames, creating the illusion of flames rising from within the logs.

• Realogs™ Technology
  Handcrafted and molded from real wood logs, featuring LED lights that pulse, adding a glowing effect as though the logs are burning.

• Adjustable Interior Lighting
  Adjust the brightness of the interior lighting from high to low, including a midnight mode that turns off the lighting to reduce TV glare.

• Interior Options
  Also available with a herringbone brick interior (RBF30, RBF36, RBF42, RBF36P, RBF24DLX).

• Comfort$aver Heater
  Dimplex’s exclusive Comfort$aver heater provides on-demand, supplemental heating to warm up to 1,000 sq. ft.

• Heater Disable Option
  The fireplace heater can be permanently disabled by removing the electronic jumper on the main control board.

• No Venting or Gas Lines Required
  No venting, gas lines, or piping needed—just frame, wire, and finish for quick and easy installation.

• 2-Year Limited Warranty
  Comes with a 2-year limited warranty for added peace of mind.

• Revillusion Flame Technology
  Ultrarealistic flames mimic the natural look of fire, providing a lifelike ambiance.

• Flame Dimming Capability
  Adjustable flame brightness allows for dimming, which simultaneously lowers the flame height.

• Clear View of the Fireplace Interior
  Enjoy a full, unobstructed view of the fireplace interior with clear visibility through the flames.

• Mood Lighting
  Includes mood lighting on the side, back, and top of the firebox interior, with white, yellow, and red color options.

• Ambient Light Sensor
  Automatically adjusts the firebox light to suit the room's lighting conditions, day or night.

• Included Accessories

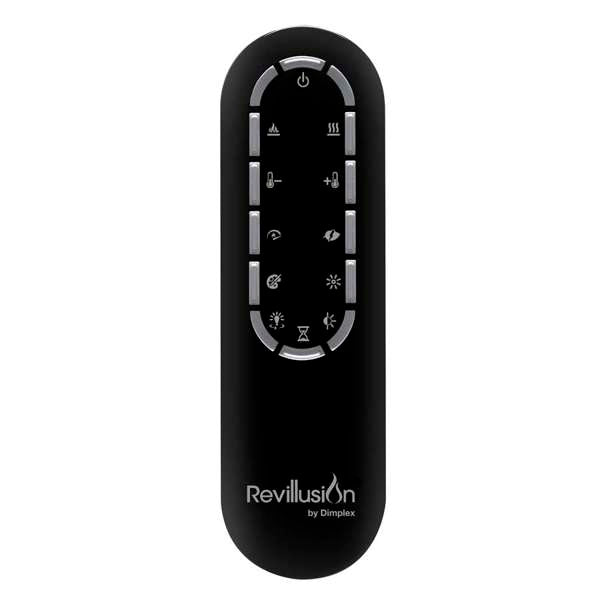

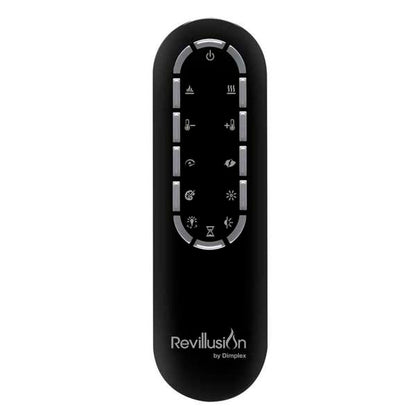

  Comes with tempered front glass, a plug kit, and a mood-maker remote control.

• Heat Control
  Deactivate the heater during warmer months for a cozy ambiance without heat.

• Cool-to-the-Touch Glass
  The front glass remains cool to the touch, ensuring safety for children and pets since the flames do not emit heat.

• Hardwiring Option
  The 120V plug-in cord kit comes connected to the unit, with the option to remove it and hardwire the unit to a 120V/240V power supply.

---

Specifications

---

Brand: Dimplex
Model Name/Series: Revillusion®
Model Number: RBF24DLXWC
Product Dimensions (H x W x D): 22.87 x 37.17 x 12.09 inches
Weight: 58.23 lbs
Wattage: 1500 watts
Amps: 12.5 amps
Adjustable Brightness: Yes
Voltage: 120V

---

Carton Dimensions and Weight
Height: 27.52 inches
Width: 29.30 inches
Depth: 16.58 inches
Weight: 58.23 lbs

---

Power Connections
Plug-In

Safety Agency Approval Countries: Canada; USA

---

Warranty
2-Year Limited Warranty (parts), 1-Year Limited Warranty (service)

---

Product Information
Title: Dimplex Revillusion 24in Built-In Firebox, Weathered Grey
Material Number: X-RBF24DLXWC
UPC: 781052129832
PROP 65 Compliance: Yes
